Heat Press Machine
Inquiry

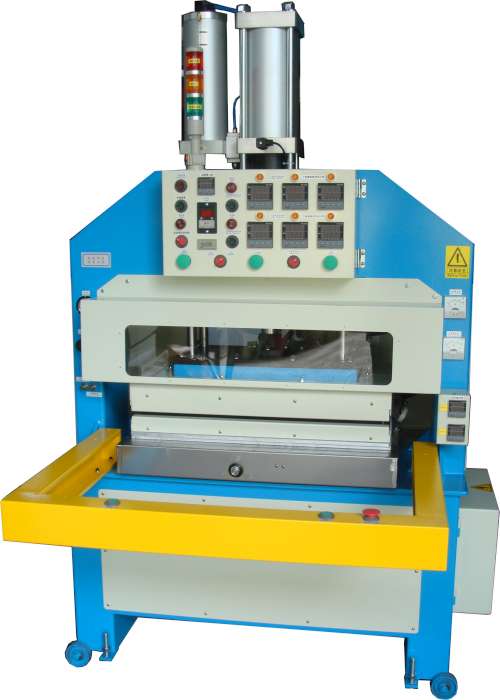

DBA-4072-20-66B-SD



Feature
  • This pneumatic pressure-boosting hot press is used for hot-press and lamination on no-sewing material, flywire, TPU film and a variety of other materials.
  • The worktable of lower hot platen reciprocates automatically for easy operation and high work efficiency.
  • This machine provides upper and lower heating functions. The hot press disc, specially designed with aluminum alloyed, heats quickly, has even temperature distribution, and is rigid and durable.
  • Six temperature control systems include communicate function and three-area-heating to ensure even temperature distribution.
  • Two temperature displays of shoe upper are provided, and with the communication wire and the converter to connect one computer or more computers. Through the instrument, the data can be read and accessed.
  • Alarm of internal temperature is available.
  • Alarm of temperature difference and alarm of electric heating wire broken are available.
  • Digital pressure display enables a precise controlling.
  • Digitalized temperature and timing controls: precise temperature auto control and digital timing auto control to ensure precise timing and guarantee stable quality.
Specification Table

Area of hot platen

Electric heat power

Temperature

Max. output

400*720mm

10.8kw

MAX250℃

20Ton

Size of cylinder

time

Machine dimensions

weight

∮125mm, boost ratio 1:30

1sec~99hr

132*125*205cm

705kg
