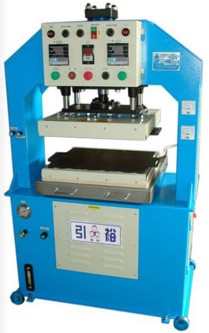

• This hydraulic hot press is used for hot-press and lamination on no-sewing material, flywire, TPU film and a variety of other materials.
• This machine provides upper and lower heating functions. The hot press disc, specially designed with aluminum alloyed, heats quickly, has even temperature distribution, and is rigid and durable.
• Two temperature control systems.
• Alarm of temperature difference.
• Digitalized temperature and timing controls: precise temperature auto control and digital timing auto control to ensure precise timing and guarantee stable quality.
Area of hot disc |
Travel |
Electric heat power |
Max. output |
40*50cm |
200mm |
5.4kw |
5Ton |
Diameter of cylinder |
Max. distance between upper and lower molds |
Pressure of pump |
Motor |
∮100mm |
180mm |
70kg/cm2 |
2HP |
Temperature |
Time |
Machine dimensions |
Weight |
Max.250℃ |
1sec~99hr |
105*73*166cm |
545kg |
